20.800.000,00
Deskripsi VECTOR O - 251 | MESIN LAS TIG + MMA + PLASMA AC/DC Spesifikasi: Power Source Dimensions : L540mmxW270mmxH450mmCooling : Fan CooledWelder Type : Inverter Power SourceEuropean Standards : EN...
Availability : 10 In Stock
Mesin Las
VECTOR

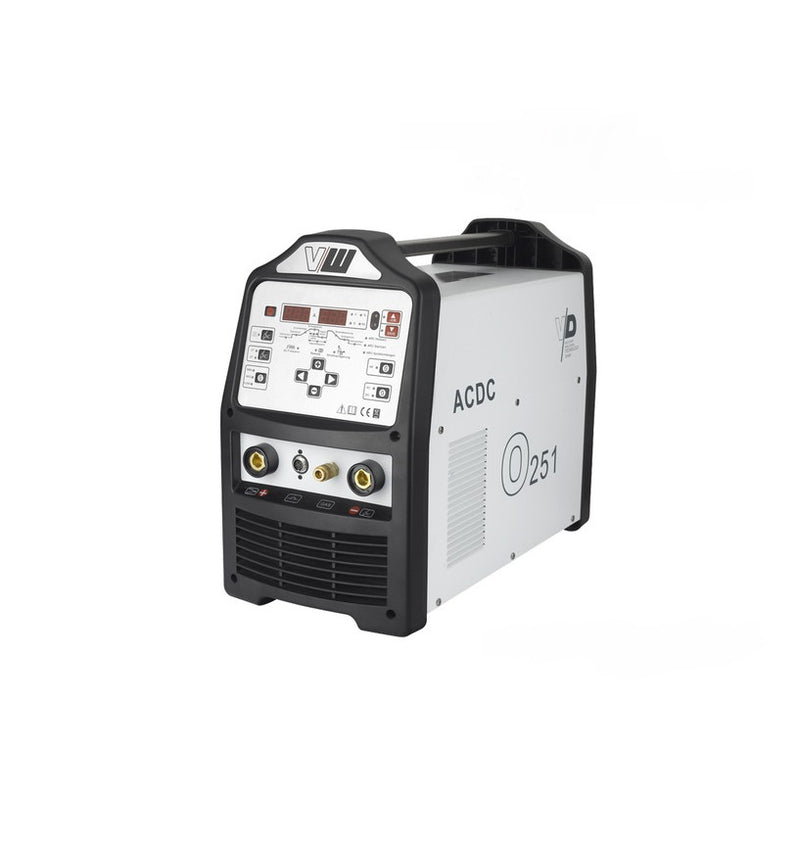

Deskripsi VECTOR O - 251 | MESIN LAS TIG + MMA + PLASMA AC/DC

Spesifikasi:

Power Source Dimensions : L540mmxW270mmxH450mm
Cooling : Fan Cooled
Welder Type : Inverter Power Source
European Standards : EN 60974-1 / IEC 60974-1
Number of Phases : 1
Nominal Supply Voltage : 220V +/- 15%
Nominal Supply Frequency : 50/60Hz
Welding Current Range ( STICK Mode) : 10 - 200A
Welding Current Range ( TIG Mode) : 10 - 200A
Welding Current Range (CUT Mode) : 10 - 50A
Effective Input Current /STICK /TIG : 20.8A
Maximum Input Current/STICK/ TIG : 41.6A
Single Phase Generator Requirement : 12.1KVA
STICK (MMA) Welding Output, 40oC, 10 min. : 200A @ 25%, 28V
141A @ 50%, 25.6V
110A @ 100%, 24.4V
TIG (GTAW) Welding Output, 40oC, 10 min. : 200A @ 25%, 18V
141A @ 50%, 15.6V
110A @ 100%, 14.4V
Cutting Output, 40oC, 10 min. : 50A @ 60%, 96V
31A @ 100%, 92.4V
Open circuit voltage : 70.0-80.0V DC
Protection Class : IP23S
